ZD Racing MX-07 1/7 Brushless RC Car

Product name: ZD Racing MX-07 RC Car Brushless

Product ratio: 1/7

Drive: 4WD

Body size: 700*510*310mm

Wheelbase: 430mm

Chassis height: 90mm

Speed: 80km/h

Reduction gear ratio: 16.5:1

Power modulation: Rocket 160A brushless power modulation XT60

Remote control: 2.4 GHZ 4 channel remote control

Remote control distance: about 400 meters

Motor: Rocket 4092 no drama motor 1450KV

Steering gear: 35kg fully waterproof steel gear steering gear, aluminum shell

Base plate: 7075 aluminum alloy base plate CNC precision machining

Shock absorber: all metal large diameter long stroke oil pressure shock absorber φ34*156mm

Tire: φ188*102mm all-terrain tire with internal and external screws

Body: New tumbling cage design, simulated cockpit PVC shell

Net weight: 8kg

Packing list:

• Car *1

• Instructions *1

• Remote control *1

Function Introduction of ZD Racing MX-07 RC Car:

1.MX-07 adopts lightweight structure, competition-grade materials, competitive driving force and strong.

2. Configure simulated headlights and taillights for cool and bright night driving.

3. Cage type super tough roll cage, all-round protection of the body at the same time more simulation. And has a very extreme off-road racing style cockpit interior and a variety of appearance simulation details.

4. With aggressive all-terrain tires, the newly designed tread has super grip and easily handles any field.

5. Super front anti-collision design, effectively alleviate various impacts, protect the body. The tail head-up wheel design, easy to look up, somersault, can provide players with a variety of fancy gameplay.

6. Equipped with a super power transmission system, MX07 uses a larger modulus and larger size differential gear, all metal differential, CNC chrome-molybdenum steel transmission teeth, imported alloy steel cup dog, the whole car thick drive shaft, large capacity shield.

7. In addition, the wave box injection molding embedded metal bearing seat is strengthened to completely solve the gear virtual position caused by deformation and wear caused by plastic long-term use, avoiding violent tooth sweeping.

ZD Racing MX-07 RC Car is a significant upgrade over the other 1/7 ZD Racing products. Next, we will introduce the ZD Racing MX-07 RC Car related improvements.

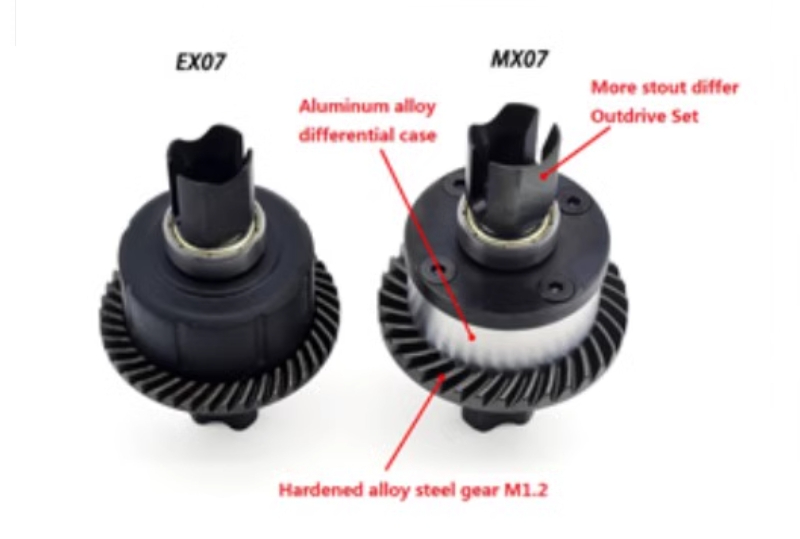

ZD Racing MX-07 RC Car's differential compared to other 1/7 RC cars:

1. The shell upgrade adopts a metal differential shell.

2. Differential parachute teeth are upgraded to 1.2 mode.

3. The cup of the differential is bolded.

The steering components of the ZD Racing MX-07 RC Car compared to other 1/7 RC cars:

1. The steering cup has been enlarged.

2. Shorten the adapter to make it fit better.

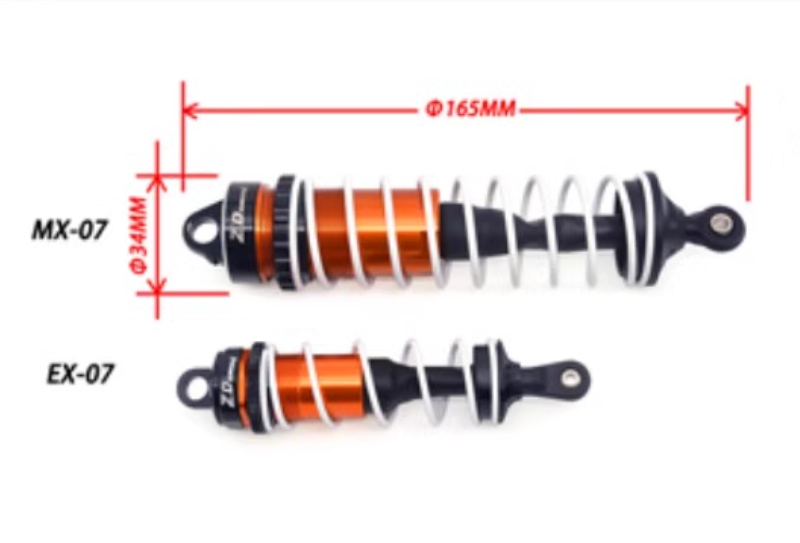

ZD Racing MX-07 RC Car's shock absorber compared to other 1/7 RC cars:

The shock absorber is roughened to make the ZD Racing MX-07 RC Car withstand greater impact.

Dog bones of the ZD Racing MX-07 RC Car compared to other 1/7 RC cars:

The dog bone is roughened to improve the hardness and bearing capacity of the dog bone.

In contrast to the other 1/7 RC cars, the ZD Racing MX-07 RC Car features an upgraded steel cup:

In contrast to the other 1/7 RC cars, the ZD Racing MX-07 RC Car has steel bushings built into the bearing position:

In contrast to the other 1/7 RC cars, the ZD Racing MX-07 RC Car uses a 4mm 7075 CNC chassis:

In contrast to other 1/7 RC cars, the ZD Racing MX-07 RC Car has upgraded the central drive shaft segment:

The upgraded section of the ZD Racing MX-07 RC Car's central drive shaft can help players get rid of the extremely long drive shaft which is easily deformed.

ZD Racing MX-07 RC Car front and rear guardrail details:

ZD Racing MX-07 RC Car Motor radiator details:

ZD Racing MX-07 RC Car axle details:

ZD Racing MX-07 RC Car Underside details:

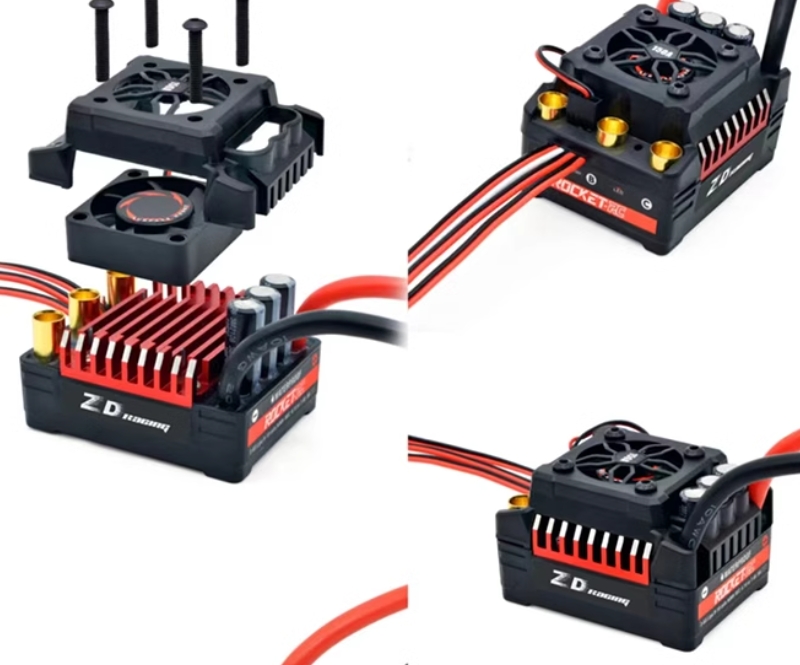

ZD Racing MX-07 RC Car electrical details:
